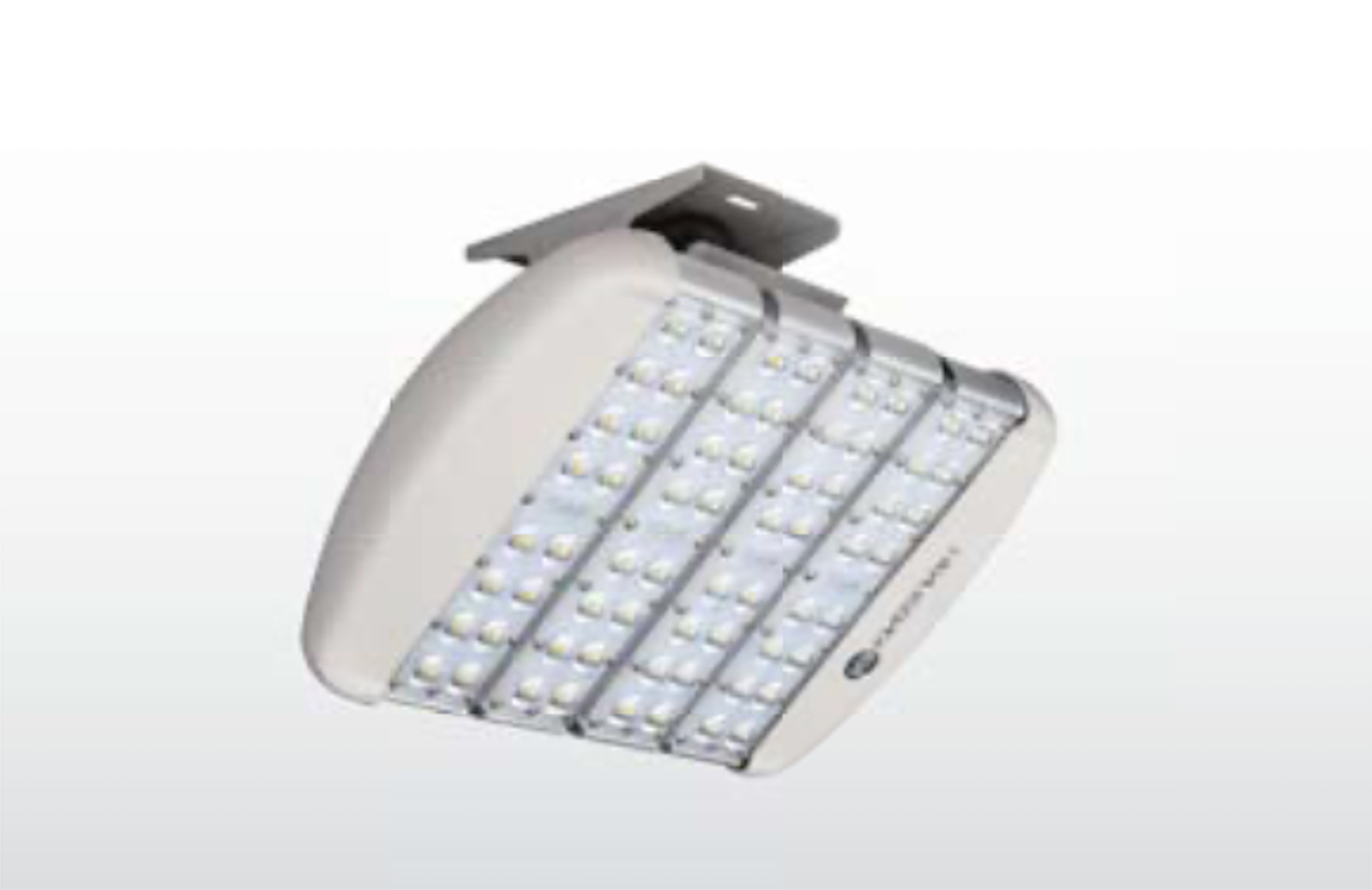

Stirrup Tunnel Light

Stirrup shares the modular concept, utilizes the advantage of incremental wattage design, and transfer to a versatile version of tunnel lighting.

With the latest 5050 technology and modular design, It could extend from 1 module to 6 modules and cover the different lighting requirement for the tunnel entrance and the middle part.

Description

Optical Specs.

LED Light Source 5050 (Lumileds / Lightning)
LED Color Temperature 4,000K (3,000K and 5,000K optional)
Color Rendering Index Ra>70 (Ra>80 optional)
Light Distribution 15° / 30°

Electrical Specs

Input 100-220-240-365V 50/60Hz
LED Driver Philips Driver (MOSO optional)
Dimming W/O; 1-1OV / DALI / Programmable

Other Specs

Temperature & Humidity -40 C ~50 C / 10~95RH
Protection 1P66/1K10
Housing Die-cast Aluminum + Modules
Installation Ground, Wall, High Mast

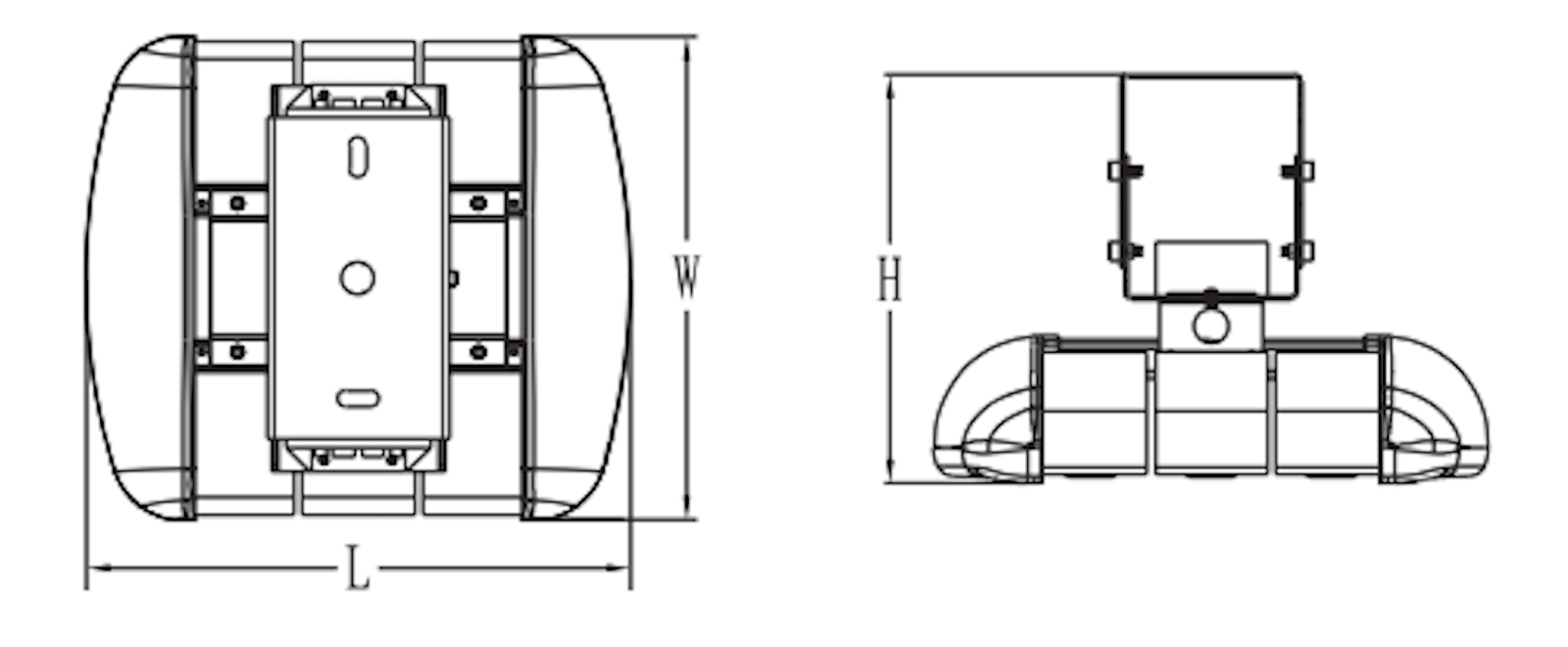

Product Dimension
