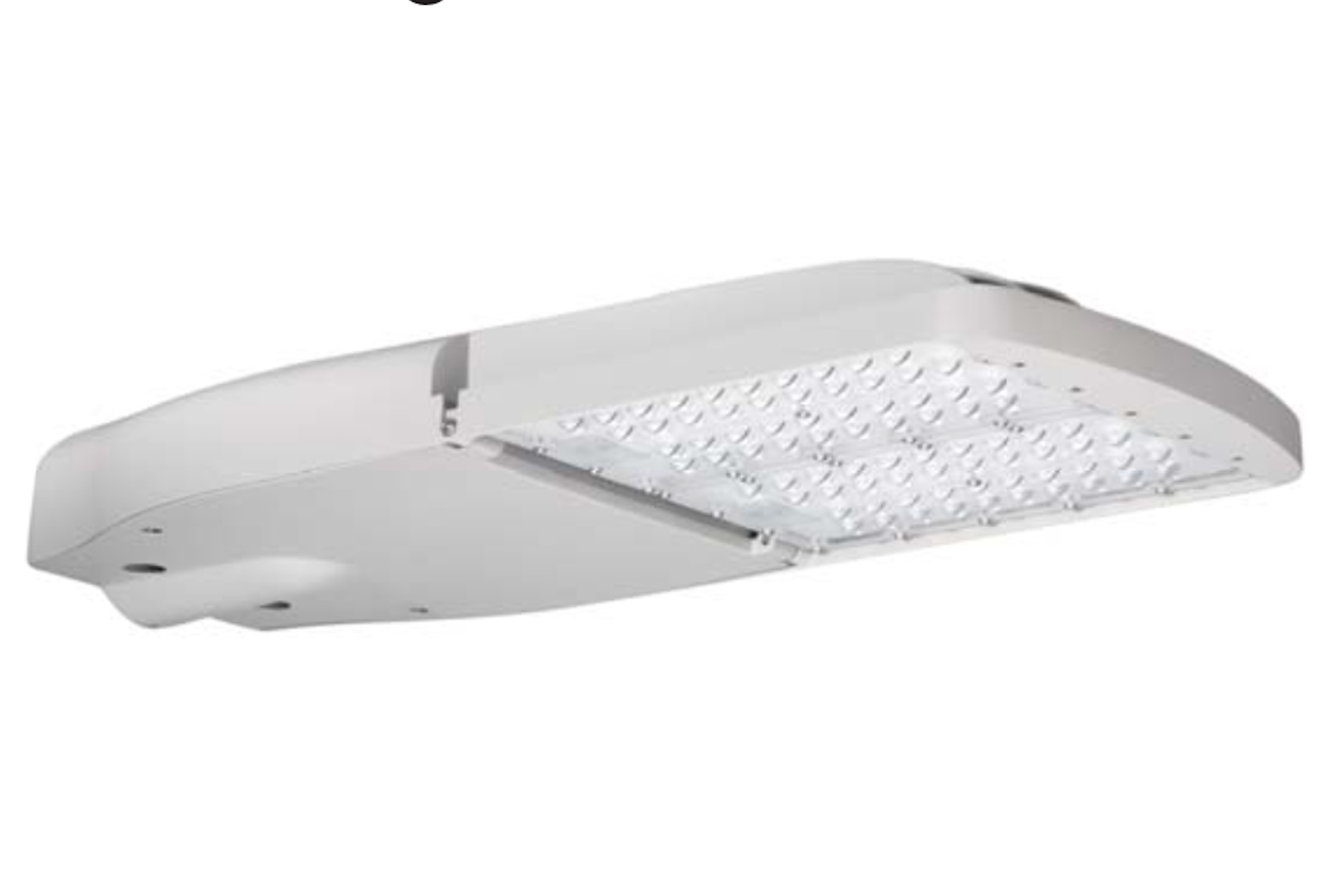

Pallas Street light

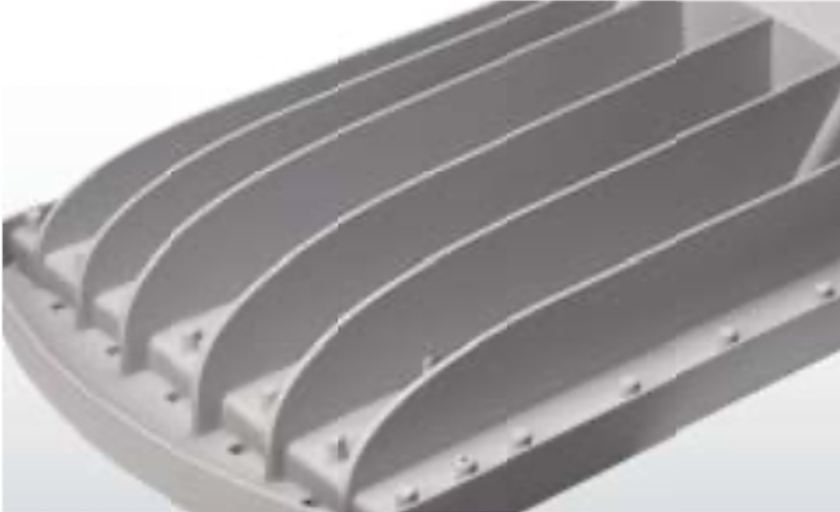

Pallas, represents our successful budaet street lighting designs. Utilizes an integral die-cast hous-ing, realizes better heat dissipation, lighter weight and body cost. As a result, under keeping the same quality premise, we budgeted the cost but no cheap the design. Two lamp body covers from 23W to 240W with 165lm/W lumen efficiency.

Still the whole Pallas series, with a smart-ready optional NEMA/ZHAGA receptacle, stands by for future smart city applications like other Premium products

Description

Optical Specs.

LED Light Source 5050 (Lightnina / Ledestar
LED Color Temperature 4,000K (5,000K and 3,000K optional)
Color Rendering Index Ra>70 (Ra>80 optional)
Light Distribution Type II / Type III

Electrical Specs

Input 100-220-240-365V 50/60Hz
Surge Protection 10KV (20KV optional)
LED Driver Philips Driver (MOSO optional)
Dimming W/O; 1-1OV / DALI / Programmable

Other Specs

Temperature & Humidity -40 C ~50 C / 10~95RH
Protection 1P66/1K09

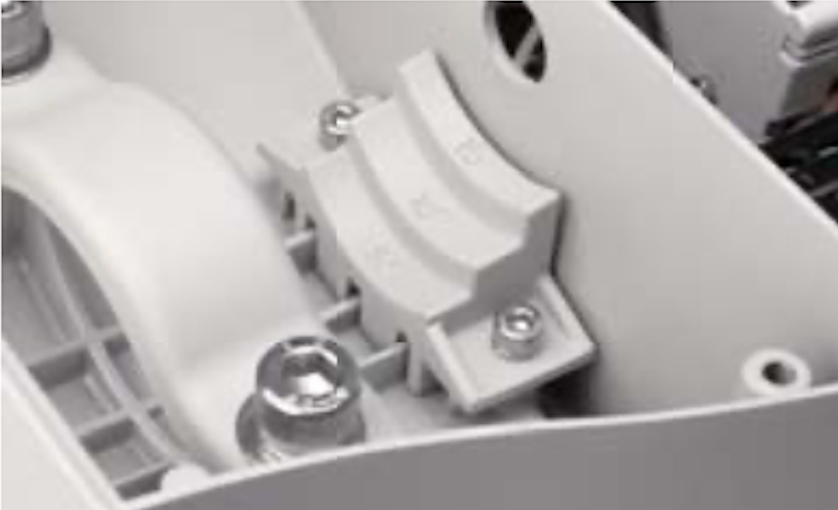

Installation Side entry with tilt angle -5° 0° 5º 10°

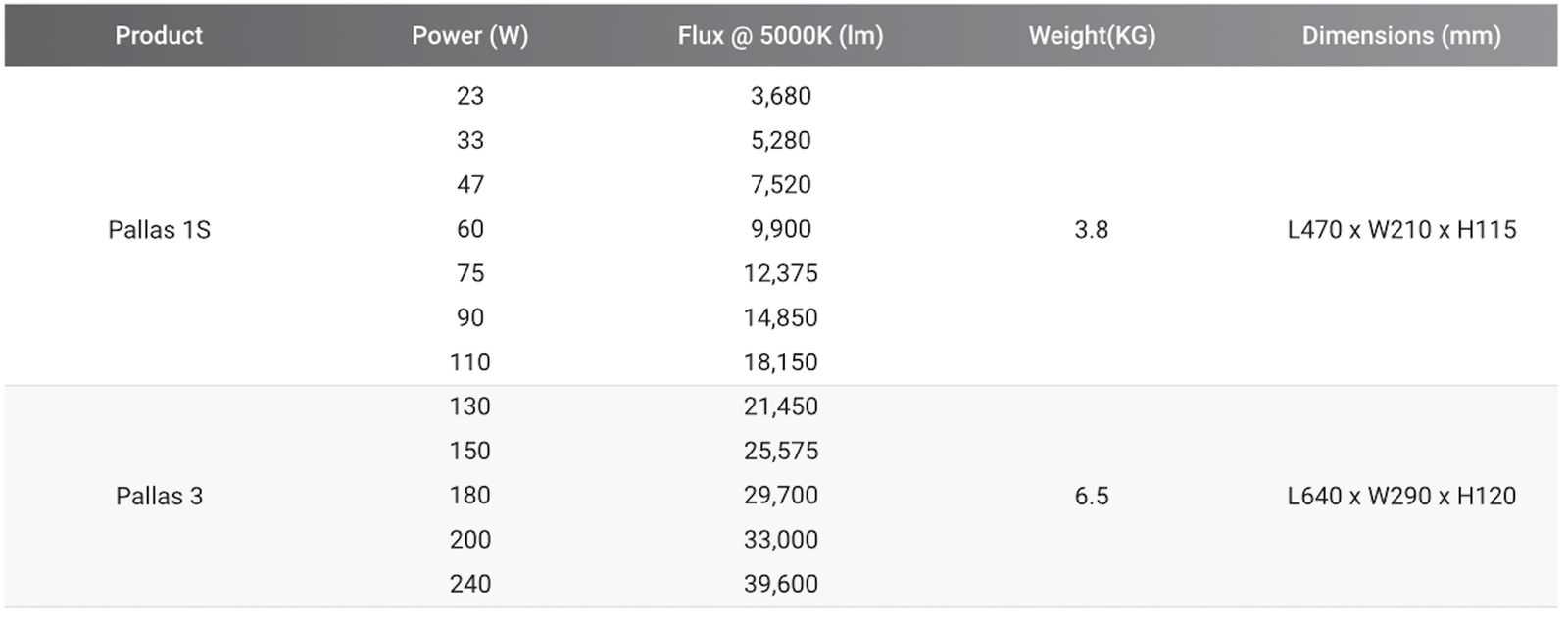

Product Dimension
