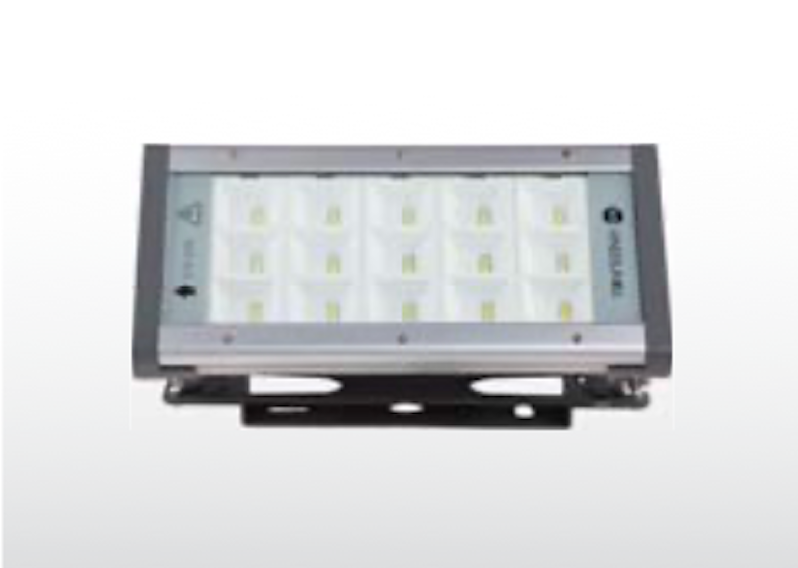

Galaxy Tunnel Light

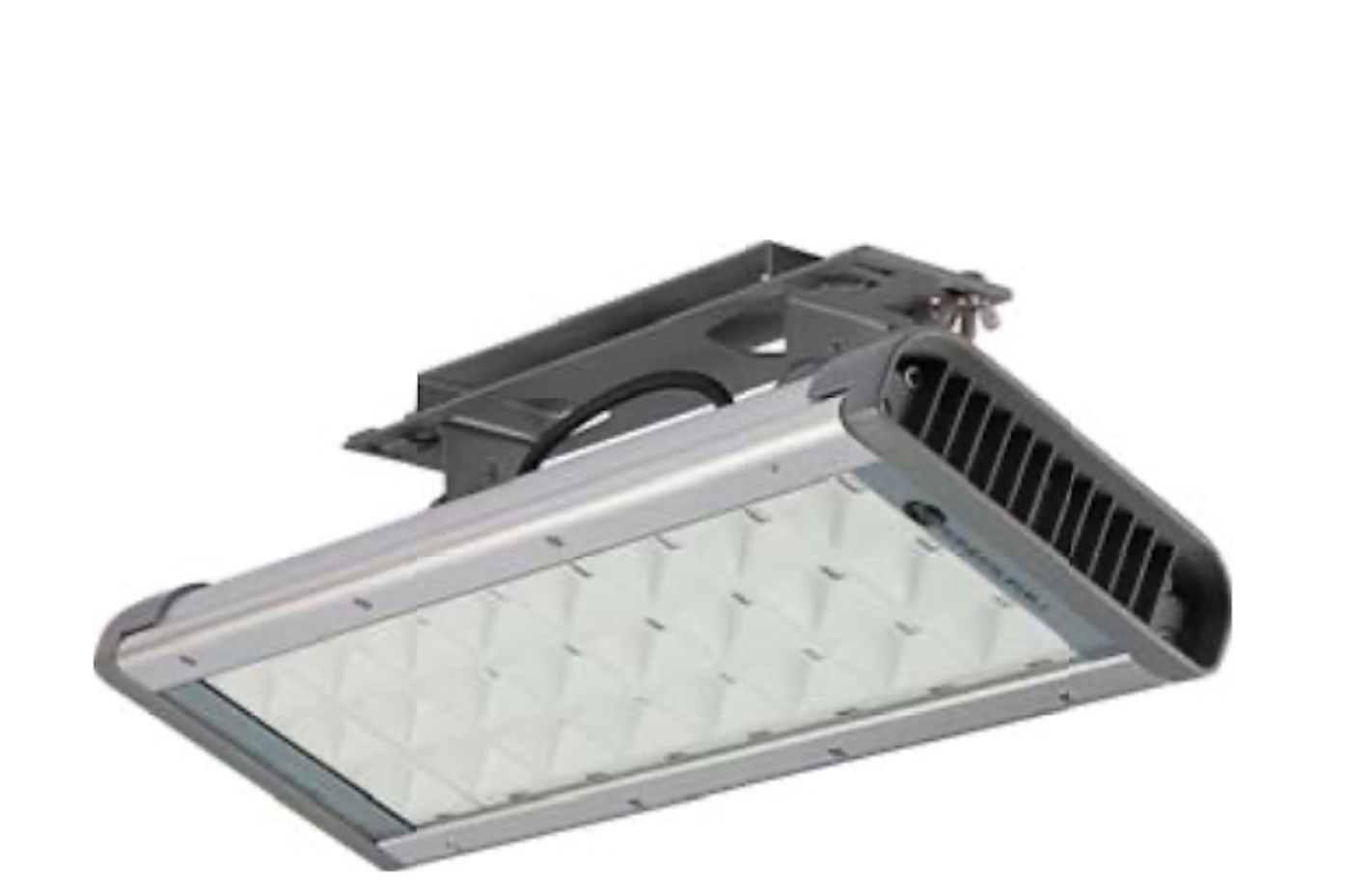

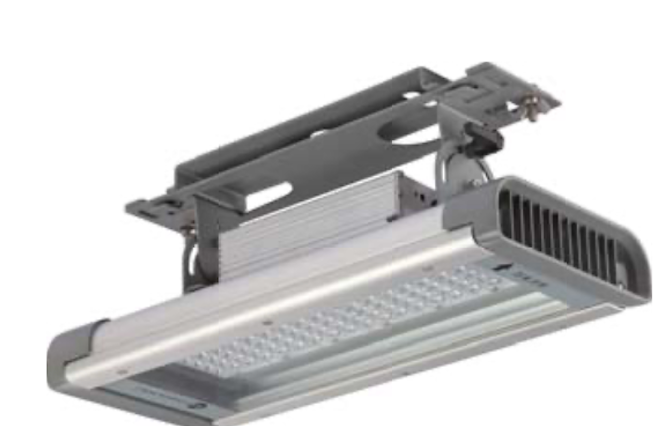

Galaxy have both Lens version and the reflector version. To utilizes the industry’s creative forward-shooting asymmetric lighting design, we ensuring luminance uniformity in the different section of the tunnel fit the requirement and substantially reducing visual glare levels in the driving direction of motorists.

In addition, the front high-strength tempered glass protects internal optical devices making the requirement of high-pressure water cleaning available, saving operation and maintenance cost.

Description

Optical Specs.

LED Light Source 5050/3030
LED Color Temperature 4,000K (3,000K and 5,000K optional)
Color Rendering Index Ra>70 (Ra>80 optional)
Light Distribution 15° / 30°

Electrical Specs

Input 100-220-240-365V 50/60Hz
LED Driver Philips Driver (MOSO optional)
Dimming W/O; 1-1OV / DALI / Programmable

Other Specs

Temperature & Humidity -40 C ~50 C / 10~95RH
Protection 1P66/1K10
Housing Die-cast Aluminum + Modules
Installation Ground, Wall, High Mast

Product Dimension
