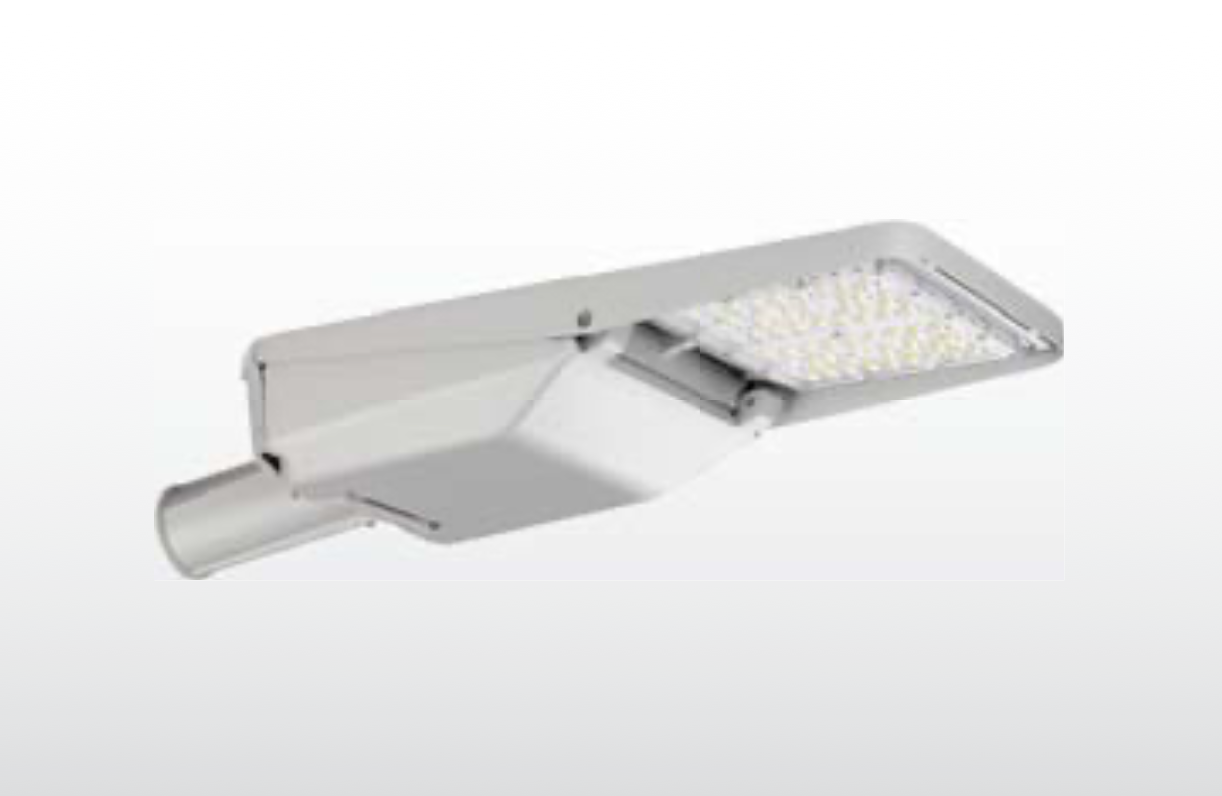

Anthena Street light

Athena, the first generation we try on multi-functional street lighting series, features with and without tempered glass options and suits diversified project requirements. This light have one lamp body which cover from 60W to 120W, It still have another 3 lamp bodies under develon.

With up to 150lm/W for Glass Version and 160lm/W for PC Cover Version, ideal for different lighting requirements.

Description

Optical Specs.

LED Light Source 5050 (Lumileds / Lightning)
LED Color Temperature 4,000K (5,000K and 3,000K optional)
Color Rendering Index Ra>70 (Ra>80 optional)
Light Distribution Type II / Type III

Electrical Specs

Input 100-220-240-365V 50/60Hz
Surge Protection 10KV (20KV optional)
LED Driver Philips Driver (MOSO optional)
Dimming W/O; 1-1OV / DALI / Programmable

Other Specs

Temperature & Humidity -40 C ~50 C / 10~95RH
Protection 1P66/1K09
Opening Chamber Tools-free
Installation Side entry or post top with tilt angle 15 degree (in steps of 5 degree)

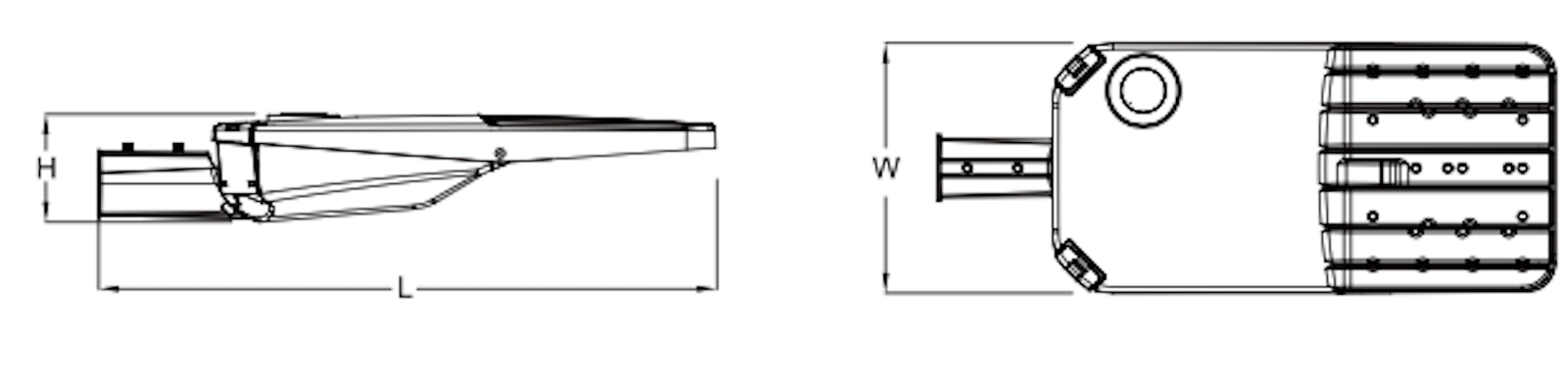

Product Dimension
